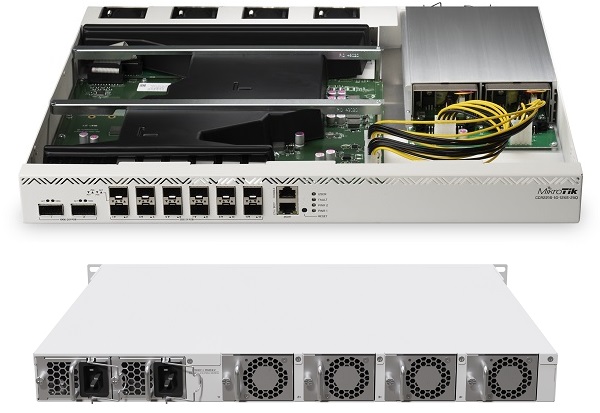

CCR2216-1G-12XS-2XQ

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072. But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading!

Specifications

Product code	CCR2216-1G-12XS-2XQ
Architecture	ARM 64bit
CPU	AL73400
CPU core count	16
CPU nominal frequency	2000 MHz
Size of RAM	16 GB
Storage size	128 MB
Storage type	NAND
License level	6
Operating System	RouterOS (v7 only)
Tested ambient temperature	-20°C to 60°C
Price	Please call us for Discount Price
Warranty	12 Months Limited Warranty

Interfaces

Gigabit Ethernet ports	1
Number of 25G SFP28 ports	12
Number of 100G QSFP28 ports	2

Suggested Bandwidth

Routing + L3HW (Without NAT, Mangle, Queue)	up to 60 Gbps
Routing + NAT + L3HW	up to 40 Gbps
Not suitable for PPPoE & Queue

Powering

Number of AC inputs	2
AC input range	100-240 V
Max power consumption	128 W
Max power consumption without attachments	80 W
FAN count	4

Peripherals

Serial console port	RJ45
Number of M.2 slots	2

Other

CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Certification

CE, ROHS
