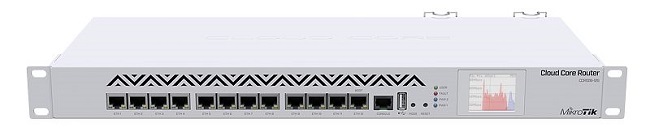

CCR1016-12G
Specifications
| Product code | CCR1016-12G |
| Architecture | TILE |
| CPU | TLR4-01680 |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| Size of RAM | 2 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| License level | 6 |
| Operating System | RouterOS |
| Dimensions | 355x145x44mm |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Price | Please call us for Discount Price |
| Warranty | 12 Months Limited Warranty |
Interfaces
| 10/100/1000 Ethernet ports | 12 |
Suggested Bandwidth
| Basic Configuration (With Filter, NAT, Mangle, Queue) | up to 1500 Mbps |
| Routing Only (Without NAT, Mangle, Queue) | up to 4500 Mbps |
Powering
| Number of AC inputs | 2 |
| AC input range | 100-240 V |
| Max power consumption | 42 W |
| Max power consumption without attachments | 37 W |
| FAN count | 2 |
Peripherals
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A)t | 1 |
Other
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Included parts
