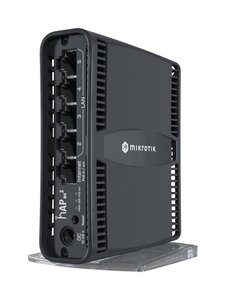

hAP ax²
A Generation 6 version of the legendary hAP ac². With PoE-in and PoE-out, much faster wireless, more RAM, and a modern CPU. The smallest fully-fledged AX router on the market!
Specifications
| Product Name | hAP ax² |
| Product code | C52iG-5HaxD2HaxD-TC |
| Architecture | ARM 64bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | 864 MHz |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| License level | 4 |
| Operating System | RouterOS (v7 only) |
| Tested ambient temperature | -40°C to 50°C |
| Dimensions | |
| IPsec hardware acceleration | Yes |
| Price | Please call us for Discount Price |
| Warranty | 12 Months Limited Warranty |
Interfaces
| Gigabit Ethernet ports | 5 |
Suggested Bandwidth
| Basic Configuration (With Filter, NAT, Mangle, Queue) | up to 120 Mbps |
| Routing Only (Without NAT, Mangle, Queue) | up to 650 Mbps |
| Bridge Mode | up to 1800 Mbps |
Wireless Capabilities
| Antenna gain dBi for 5 GHz | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Wireless 5 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz chip model | QCN-5052 |
| Antenna gain dBi for 2.4 GHz | 4.5 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Wi-Fi 2.4 GHz generation | Wi-Fi 6 |
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| WiFi speed | AX1800 |
Powering
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| Max power consumption | 27 W |
Certification & Approvals
| Certification | CE, FCC, IC, EAC, ROHS |
Included parts
